Nuova Simat

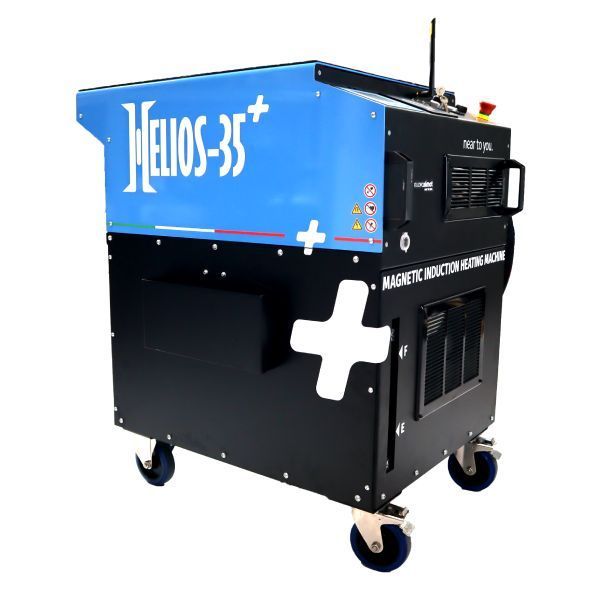

MAGNETIC INDUCTION HEATING MACHINE
for BOLTING AND SHRINK FITTING

SAFE

Safe_c

FAST

Fast_c

PATENTED

Patented_c

ALL IN ONE

AllInOne_c

INDUSTRY 4.0

Indutry40_c

APPLICATIONS

BOLTING

STRAIGHT INDUCTORS

For large size bolts / studs removal and installation on gas turbines casings, steam turbines, and other static vessel applications such as heat exchangers. Suitable for hole sizes starting from Ø 9mm up to more than 32mm, and lengths up to more than 1500mm

SHRINK FITTING

RING-SHAPED INDUCTORS

Our induction heater Helios35+, when equipped with ring-shaped inductors, can heat up any cylindrical surface for on-site assembly and disassembly operations.
Suitable for diameters up to 600mm and more.

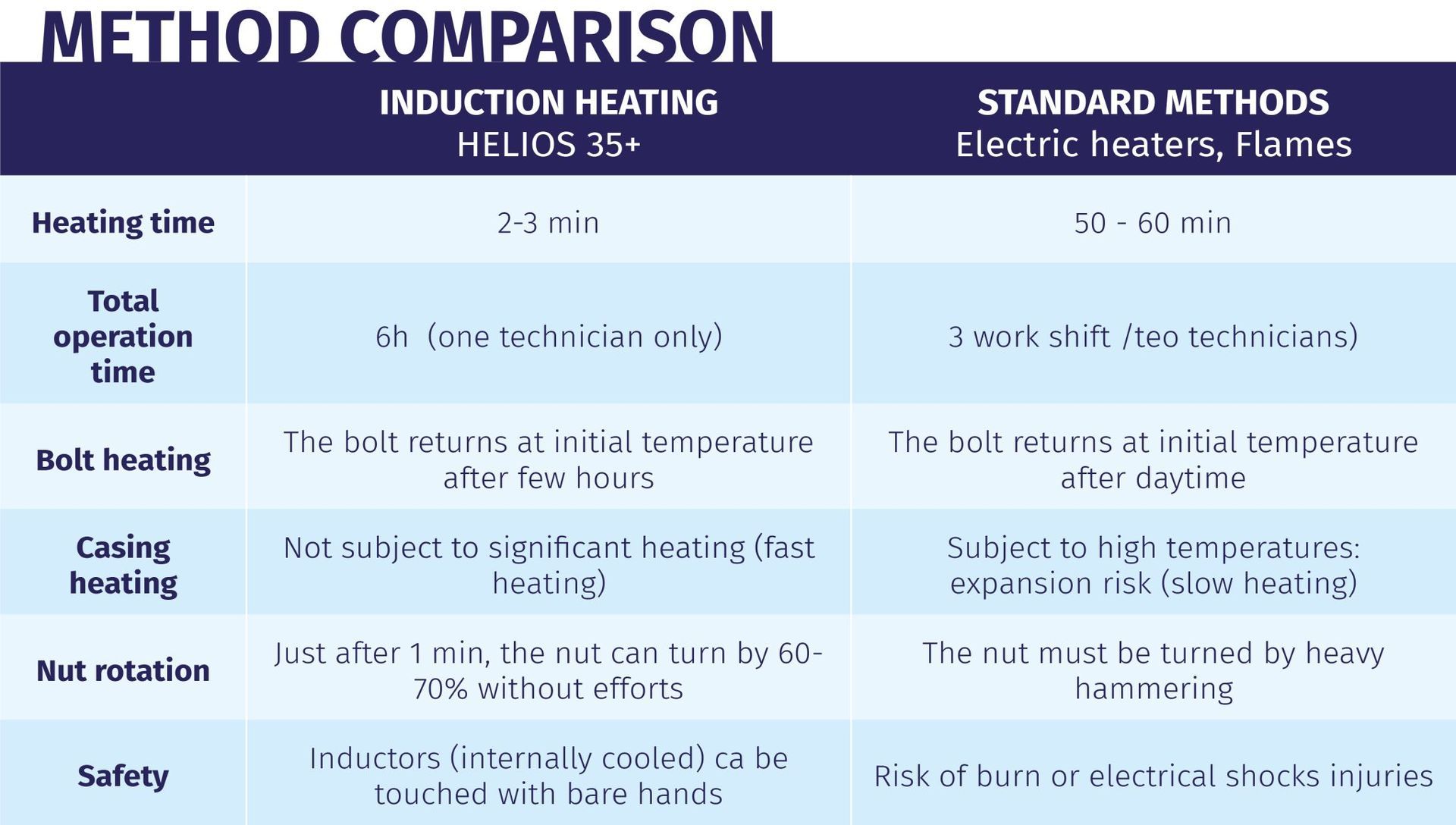

SAFETY AND TIME SAVING

Case: Steam Turbine, Bolt quantity: 44, Bolt size: M64 x L=500mm

Fast_c

OPERATION TIME
REDUCED BY 80%

Safe_c

NO RISK
OF BURN INJUIRES

CONTACT US

Write to request advice for purchase, rental, or on-site service!
